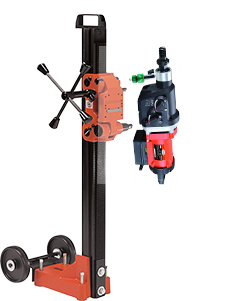

Core Bore M-5 Anchor Drill Rigs

Core Bore M-5 Anchor Drill Rigs

12 Inch Standard Bit Capacity , 20" w/spacers /16" Standard Bit Capacity (CB733,CB744)

Includes Anchor Stand , Motor and Control Panel

Choose from 10 motors

Features & Benefits:

  • Quick release motor mount
  • 4-spoke sliding handle (can be used on right or left)
  • Positive carriage lock
  • 2-1/2” x 3” extruded aluminum light weight column (mast) that is hard anodized to prevent wear
  • Top carrying handle (ceiling jack available)
  • Large bit capacity in a smaller rig system
  • Allows for mounting hydraulic motors
  • Double column support for increased stability
  • Easily adjustable slide bearings

Choose Motor

Model Motor Power Motor RPM Part# Weight
M5A-23-DK22 WEKA DK22 23AMP 550/1120/1600 4200051 87
M5A-23-DK22S WEKA DK22S 23AMP 800/1640/2430 4200052 87
M5A-20-CB744 Core Bore CB744* 25AMP 385/530/975/1340 4245109 91
M5A-20-MW4004 Milwaukee 4004 20AMP 300/600 4200055 91
M5A-20-MW4096 Milwaukee - 4096 20AMP 450/900 4200056 91
M5A-20-MW4005 Milwaukee - 4005 20AMP 600/1200 4200057 91
M5A-15-MW4097 Milwaukee -4097 15AMP 500/1000 4220059 91
M5A-11-DK22 WEKA DK22 11AMP (230V) 550/1000/1600 420060 86
M5A-11-DK22S WEKA DK22S 11AMP (230V) 800/1640/2430 4220061 86
M5C-20-CB733WO Core Bore CB733* 20AMP 550/1000/1600 4245120 90
* CB700 Series motors do not require a control panel for operation. These motors include LED amp meters and on/off switches

Choose Model M5C-20-CB733WO
Choose Model
Price Qty Purchase
Call For Price
Item ID 4245120 In Stock
Save to Wish List

Additional information

Weight 90 lbs
Dimensions N/a

Reviews

This product has not been reviewed yet. Be the first to review it.

Your review

Description

Model Motor Power Motor RPM Part# Weight
M5A-23-DK22 WEKA DK22 23AMP 550/1120/1600 4200051 87
M5A-23-DK22S WEKA DK22S 23AMP 800/1640/2430 4200052 87
M5A-20-CB744 Core Bore CB744* 25AMP 385/530/975/1340 4245109 91
M5A-20-MW4004 Milwaukee 4004 20AMP 300/600 4200055 91
M5A-20-MW4096 Milwaukee - 4096 20AMP 450/900 4200056 91
M5A-20-MW4005 Milwaukee - 4005 20AMP 600/1200 4200057 91
M5A-15-MW4097 Milwaukee -4097 15AMP 500/1000 4220059 91
M5A-11-DK22 WEKA DK22 11AMP (230V) 550/1000/1600 420060 86
M5A-11-DK22S WEKA DK22S 11AMP (230V) 800/1640/2430 4220061 86
M5C-20-CB733WO Core Bore CB733* 20AMP 550/1000/1600 4245120 90
M5C-25-CB744WO Core Bore CB744* 25AMP 385/530/975/1340 4245109 90
* CB700 Series motors do not require a control panel for operation. These motors include LED amp meters and on/off switches
