Early Entry - Soff Cut Saws

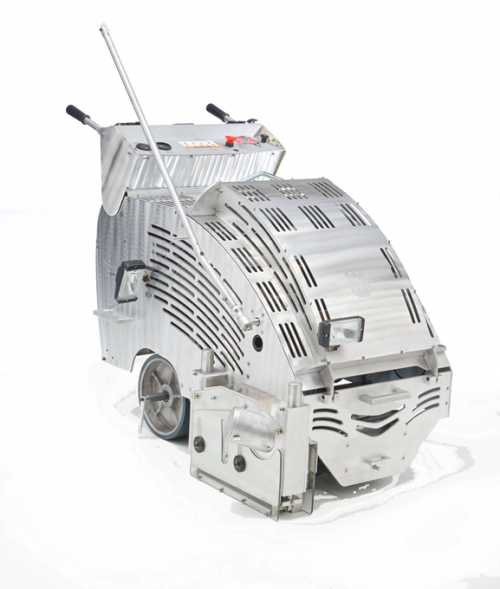

Husqvarna Soff Cut 5000

Husqvarna Soff Cut 5000

The Husqvarna Soff-Cut 5000 Paver self-propelled gas saw is designed for highway and paving applications. Features include a 27 hp engine with overhead valves, heavy-duty air cleaner, electric start, full pressure lubrication, hydraulic valve lifters, and a mechanical fuel pump. Several blade widths can be used, allowing different joint widths and crack control simultaneously. The unique saw design allows for a 4" depth of cut.

Dust Port Now Included

Output power (As rated by the engine/motor manufacture) Kohler CH 740- 27 hp
Blade diameter, max: 14 in
Weight: 495 lbs

Price Qty Purchase
Call For Price
Item ID 966845704 In Stock
Save to Wish List

Additional information

Weight 593 lbs
Dimensions N/a

Reviews

This product has not been reviewed yet. Be the first to review it.

Your review

Description

Technical specifications
Blade range, in (mm) 14 (350)     12 (305)
Depth of cut, in (mm) 3 (76)-4 (100)     2 (50)-3 (76)
Maximum power, hp (kW)* 25 (18)
Engine specifications Kohler CH740
Average bladeshaft, rpm 3,100
Blade flanges, in (mm) 4-3/4 (120)
Displacement, cu in (I) 44 (725)
Bore/stroke, in (mm) 3.3/2.6 (83-67)
Maximum weight crated, lbs (kg) 593 (269)
Maximum weight uncrated, lbs (kg) 495 (225)
Dimensions uncrated, pointer and blade guard up, handles in, in (mm) L x W x H 95 x 30-½ x 41 (2,413 x 775 x 1,041)
Common Specs
Power source Gasoline
Arbor size Triangular
Bladeshaft diameter, in (mm) 1-½ (38)
Cylinders/cycle 2/4
Fuel capacity, gal (I) 3.16 (12)
Air filter Heavy Duty Canister
Starter Electric
Engine cooling Air
Axle front/rear, in (mm) 1/1 (25.4/25.4)
Wheels front, in (mm) 4 x 4 (102 x 102) 2 each 4 x 2 (102 x 51) 1 each
Wheels rear, in (mm) 11 x 4 (279 x 102) 2 each
Blade guard type Enclosed
Number of belts 1 (4 band 3VX) 5000    1(3band 3VX) 4200
Blade depth control Electric
Oil capacity, qt (I) 2 (1.9)
Handlebar adjustment Electric
Transmission type Hydrostatic
