CS Unitec

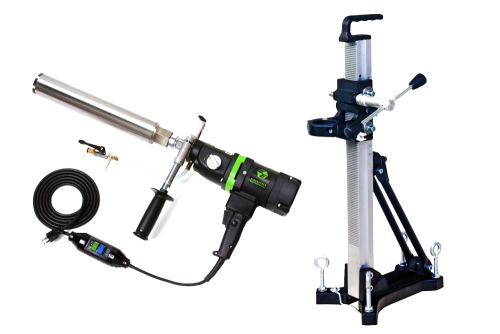

Eibenstock END 130/3.1 Core Drill 3-Speed w/ Anchor Stand

Eibenstock END 130/3.1 Core Drill 3-Speed w/ Anchor Stand

The END END 130/3.1 PO is a fast, efficient diamond core drill system. Use hand-held for up to 3" diameter and/or rig-mounted for up to 6" diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and longer tool life. All models include a built-in leveling bubble, safety slip clutch, carrying case, water swivel, overload signal and Ground Fault Interrupter. Connecting threads of 5/8" x 11 UNC, 1-1/4"x 7 UNC and G1/2" fit all standard core bits.

Features

  • 3-speed oil bath gearbox – optimal lubrication
  • Short, compact design for tight spaces
  • All-aluminium housing
  • Integrated level bubble on motor and handle for 90˚ drilling
  • Side handle with connection for centering device or water collection
  • Overload temperature control and GFCI overcurrent cut-off
  • Overload indicator light turns red when motor is overloaded - allows operator to reduce the feed pressure and protect the motor
  • Cut-off carbon brushes – protects the motor


Choose

  • Drill + Stand
  • Drill + Stand + Vacuum Pump
Choose Model Drill + Anchor Stand
Choose Model
Price Qty Purchase
Call For Price
Item ID END130/3.1POSA In Stock
Save to Wish List Continue Shopping

Additional information

Weight
Dimensions

Reviews

not yet rated
not yet rated
0 reviews

Your review

Description

POSA

Power input 15 Amp
Rated Voltage 110 V
Load Speeds (RPM) 600 / 1300 / 2800
No-Load Speeds 1000 / 2200 / 4300
Drilling Diameter Gear 1 - 3-1/4"-6"*
Gear 2 - 1-3/4"-3-1/4"
Gear 3 - 1/2"-1-3/4"
*with drill rig
Spindle Connection 1-1/4"x7 UNC
5/8"x11 UNC
Collar Diameter 60mm
Weight 37 lbs.
Supplied END 130/3.1 PO with anchor stand BST 104/60 V and 60mm motor mount

POSV

Power input 15 Amp
Rated Voltage 110 V
Load Speeds (RPM) 600 / 1300 / 2800
No-Load Speeds 1000 / 2200 / 4300
Drilling Diameter Gear 1 - 3-1/4"-6"*
Gear 2 - 1-3/4"-3-1/4"
Gear 3 - 1/2"-1-3/4"
*with drill rig
Spindle Connection 1-1/4"x7 UNC
5/8"x11 UNC
Collar Diameter 60mm
Weight 45 lbs.
Supplied END 130/3.1 PO with anchor stand BST 104/60 V, vacuum pump (P/N 253 511) and fittings
