Home > Product Category > Diamond Cutting Saws > Flat Saws & Walk Behinds

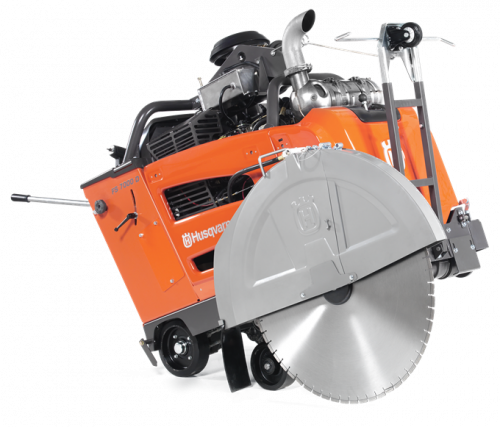

Husqvarna FS 7000D 26"- 42"

Husqvarna FS 7000D 26- 42

The FS 7000 D is a powerful diesel walk-behind floor saw with low emissions compliant with Tier 4 and Stage IIIB regulations. The product's size, weight and balance is optimized for high production in applications cutting asphalt and concrete. With an impressive level of sustainable torque from the Deutz turbo diesel engine, it maximize production rates in the toughest conditions and contributes to a healthier working environment. The modern, service-friendly design, ergonomic controls and electronic support systems are highly intuitive, with focus on operator efficiency and convenience. The product is available with single speed or with 3-speed gearbox, as well as blade clutch, electronic tracking system on the rear axle, 5th wheel, light kit, water pump kit and weight kits. Call our experts at 1-800-607-2903 for more information and to recieve a customized quote MSRP  Range $44,362.00 - $52,215

  • Intuitive and ergonomic control panel: All important functions are easy to reach and monitor, such as blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder.
  • Powerful and fuel-efficient- Common-rail diesel engine with low emissions.
  • Easy adjustment of tracking for straight cuts
    Electric tracking system includes position indicator on the display, it can automatically return to neutral position and has the ability to memorise last used setting.
  • Low emissions- Equipped with diesel particle filter (DPF). Complies with Stage IIIB / Tier 4 regulations.
Price Qty Purchase
Call For Price
Item ID FS 7000D In Stock
Save to Wish List

Additional information

Weight N/a
Dimensions N/a

Reviews

This product has not been reviewed yet. Be the first to review it.

Your review

Description

COMMON Specs FS 7000
Engine Specifications Deutz C4D155.4
Maximum power, hp (kW)* 74 (55)
Power at bladeshaft, hp (kW) 66 (48)
Arbor size, in (mm) 1 (25)
Bladeshaft diameter, in (mm) 2 (51)
Cylinders/cycle 4/4
Fuel capacity, gal (I) 10.6 (40)
Air filter Dual element radial seal with rain hood
Starter Electric
Engine cooling Liquid/air
Axle front/rear, in (mm) 1 (25)
Wheels front, in (mm) 8 x 3 (203 x 76)
Wheels rear, in (mm) 10 x 3 (254 x 76)
Blade guard type Slip on
Number of belts 16 (Set of 4, banded belts)
Blade depth control Electrohydraulic pump
Dimensions uncrated, pointer and blade guard up, handles in, in (mm) L x W x H 67 x 38 x 57 (1,701 x 965 x 1,448)
Displacement, cu in (I) 178 (2.92)
Bore/stroke, in (mm) 3.6/4.3 (91/109)
Oil capacity, qt (I) 9 (8.5)
Handlebar adjustment Variable position
Transmission type Balanced dual motor hydrostatic drive
Transmission speeds, fpm 0-300
Electric tracking (optional)  Electric switch operated
Technical Specifications 20"
Maximum blade diameter, in (mm) 20 (508)
Maximum depth of cut, in (mm) 7-5/8 (196)
Average bladeshaft, rpm  2,362
Blade flanges, in (mm) 4-½ (114)
Maximum weight crated, lbs (kg) 2,213 (1,004)
Maximum weight uncrated, lbs (kg) 2,103 (954)
Technical Specifications 26"
Maximum blade diameter, in (mm) 26 (660)
Maximum depth of cut, in (mm) 10-½ (267)
Average bladeshaft, rpm  1,762
Blade flanges, in (mm) 5 (127)
Maximum weight crated, lbs (kg) 2,224 (1,009)
Maximum weight uncrated, lbs (kg) 2,114 (959)
Technical Specifications 26" 3 SP
Maximum blade diameter, in (mm) 26 (660)
Maximum depth of cut, in (mm) 10-1/2 (267)
Average bladeshaft, rpm  1,860/2,170/3,100
Blade range, in (mm) 14/18/26 (350/450/660)
Blade flanges, in (mm) 5 (127)
Maximum weight crated, lbs (kg) 2,256 (1,023)
Maximum weight uncrated, lbs (kg) 2,146 (973)
Technical Specifications 30"
Maximum blade diameter, in (mm) 30 (762)
Maximum depth of cut, in (mm) 12-½ (305)
Average bladeshaft, rpm  1,624
Blade flanges, in (mm) 5 (127)
Maximum weight crated, lbs (kg) 2,233 (1,013)
Maximum weight uncrated, lbs (kg) 2,123 (963)
Technical Specifications 30" 3SP
Maximum blade diameter, in (mm) 30 (762)
Maximum depth of cut, in (mm) 12-1/2 (305)
Average bladeshaft, rpm  1,600/1,880/2,680
Blade range, in (mm) 18/26/30 (450/660/762)
Blade flanges, in (mm) 5 (127)
Maximum weight crated, lbs (kg) 2,265 (1,027)
Maximum weight uncrated, lbs (kg) 2,155 (977)
Technical Specifications 36"
Maximum blade diameter, in (mm) 36 (914)
Maximum depth of cut, in (mm) 15 (381)
Average bladeshaft, rpm  1,354
Blade flanges, in (mm) 6 (152)
Maximum weight crated, lbs (kg) 2,246 (1,019)
Maximum weight uncrated, lbs (kg) 2,136 (969)
Technical Specifications 36" 3 SP
Maximum blade diameter, in (mm) 36(914)
Maximum depth of cut, in (mm) 15 (381)
Average bladeshaft, rpm  1,360/1,620/2,300
Blade range, in (mm) 20/30/36 (508/762/914)
Blade flanges, in (mm) 6 (152)
Maximum weight crated, lbs (kg) 2,278 (1,033)
Maximum weight uncrated, lbs (kg) 2,168 (983)
Technical Specifications 42"
Maximum blade diameter, in (mm) 42 (1,067)
Maximum depth of cut, in (mm) 17-½ (445)
Average bladeshaft, rpm  1,150
Blade flanges, in (mm) 7 (178)
Maximum weight crated, lbs (kg) 2,385 (1,082)
Maximum weight uncrated, lbs (kg) 2,275 (1,032)
Technical Specifications 42" 3SP
Maximum blade diameter, in (mm) 42 (1,067)
Maximum depth of cut, in (mm) 17-½ (445)
Average bladeshaft, rpm  1,180/1,380/1,960)
Blade range, in (mm) 30/36/42  (762/914/1,067)
Blade flanges, in (mm) 7 (178)
Maximum weight crated, lbs (kg) 2,417 (1,096)
Maximum weight uncrated, lbs (kg) 2,307 (1,046)
