Core Bore M-5 Heavy Duty Quick Disconnect Core Rigs

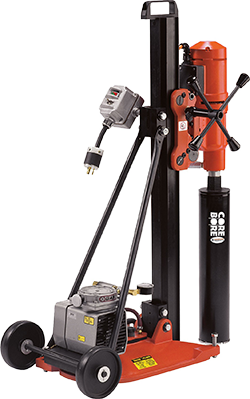

Core Bore M-5 Heavy Duty Quick Disconnect Core Rigs

12” Standard Bit Capacity, 20” w/Spacers - 16" Standard Bit Capacity (CB733 CB744 motors)

Choose From 10 Motors -Combo base - with or without vacuum pump

Features & Benefits:

  • Quick release motor mount
  • 4-spoke sliding handle (can be used on right or left)
  • Positive carriage lock
  • 2-1/2” x 3” extruded aluminum light weight column (mast) that is hard anodized to prevent wear
  • Quick release vacuum button
  • Top carrying handle (ceiling jack available)
  • Large bit capacity in a smaller rig system
  • Allows for mounting hydraulic motors
  • Angle stand to drill up to 45°
  • Double column support for increased stability
  • Easily adjustable slide bearings

Choose from these models:

Model Vacuum Pump Motor Power Motor RPM Part# Weight
M5C-20-MW4004 No Milwaukee 4004 20AMP 300/600 4220020 99
M5C-20-MW4096 No Milwaukee - 4096 20AMP 450/900 4220021 99
M5C-20-MW4005 No Milwaukee - 4005 20AMP 600/1200 4220022 99
M5C-15-MW4097 No Milwaukee -4097 15AMP 500/1000 4220024 99
M5C-11-DK22 No WEKA DK22 11AMP (230V) 550/1120/1600 4220025 98
M5C-11-DK22S No WEKA DK22S 11AMP (230V) 800/1640/2430 4220026 98
M5C-23-DK22 No WEKA DK22 23AMP 550/1120/1600 4220017 105
M5C-23-DK22S No WEKA DK22S 23AMP 800/1640/2430 4220018 105
M5C-20-CB744 No Core Bore CB744* 25AMP 385/530/975/1340 4245108 105
M5C-20-CB733WO Yes Core Bore CB733* 25AMP 550/1000/1600 4245121 108
M5C-23-DK22-V Yes WEKA DK22 23AMP 550/1120/1600 4220001 125
M5C-23-DK22S-V Yes WEKA DK22S 23AMP 800/1640/2430 4220002 125
M5C-11-DK22-V Yes WEKA DK22 11AMP 550/1120/1600 4220010 114
M5C-11-DK22S-V Yes WEKA DK22S 11AMP (230V) 800/1640/2430 4220011 114
M5C-20-CB744-V Yes Core Bore CB744* 25AMP 385/530/975/1340 4245110 130
M5C-20-MW4004-V Yes Milwaukee 4004 20AMP 300/600 4220005 119
M5C-20-MW4096-V Yes Milwaukee - 4096 20AMP 450/900 4220006 119
M5C-20-MW4005-V Yes Milwaukee - 4005 20AMP 600/1200 4220007 119
M5C-15-MW4097-V Yes Milwaukee -4097 15AMP 500/1000 4220009 119
* CB700 Series motors do not require a control panel for operation. These motors include LED amp meters and on/off switches
Choose Vacuum Pump No
Choose Model M5C-15-MW4097
Choose Vacuum Pump
Choose Model
Price Qty Purchase
Call For Price
Item ID 4220024 In Stock
Save to Wish List

Additional information

Weight 99 lbs
Dimensions N/a

Reviews

This product has not been reviewed yet. Be the first to review it.

Your review

Description

Model Vacuum Pump Motor Power Motor RPM Part# Weight
M5C-20-MW4004 No Milwaukee 4004 20AMP 300/600 4220020 99
M5C-20-MW4096 No Milwaukee - 4096 20AMP 450/900 4220021 99
M5C-20-MW4005 No Milwaukee - 4005 20AMP 600/1200 4220022 99
M5C-15-MW4097 No Milwaukee -4097 15AMP 500/1000 4220024 99
M5C-11-DK22 No WEKA DK22 11AMP (230V) 550/1120/1600 4220025 98
M5C-11-DK22S No WEKA DK22S 11AMP (230V) 800/1640/2430 4220026 98
M5C-23-DK22 No WEKA DK22 23AMP 550/1120/1600 4220017 105
M5C-23-DK22S No WEKA DK22S 23AMP 800/1640/2430 4220018 105
M5C-20-CB744 No Core Bore CB744* 25AMP 385/530/975/1340 4245108 105
M5C-20-CB733WO Yes Core Bore CB733* 25AMP 550/1000/1600 4245121 108
M5C-23-DK22-V Yes WEKA DK22 23AMP 550/1120/1600 4220001 125
M5C-23-DK22S-V Yes WEKA DK22S 23AMP 800/1640/2430 4220002 125
M5C-11-DK22-V Yes WEKA DK22 11AMP 550/1120/1600 4220010 114
M5C-11-DK22S-V Yes WEKA DK22S 11AMP (230V) 800/1640/2430 4220011 114
M5C-20-CB744-V Yes Core Bore CB744* 25AMP 385/530/975/1340 4245110 130
M5C-20-MW4004-V Yes Milwaukee 4004 20AMP 300/600 4220005 119
M5C-20-MW4096-V Yes Milwaukee - 4096 20AMP 450/900 4220006 119
M5C-20-MW4005-V Yes Milwaukee - 4005 20AMP 600/1200 4220007 119
M5C-15-MW4097-V Yes Milwaukee -4097 15AMP 500/1000 4220009 119
* CB700 Series motors do not require a control panel for operation. These motors include LED amp meters and on/off switches
